IP CCTV and PIR Detection System

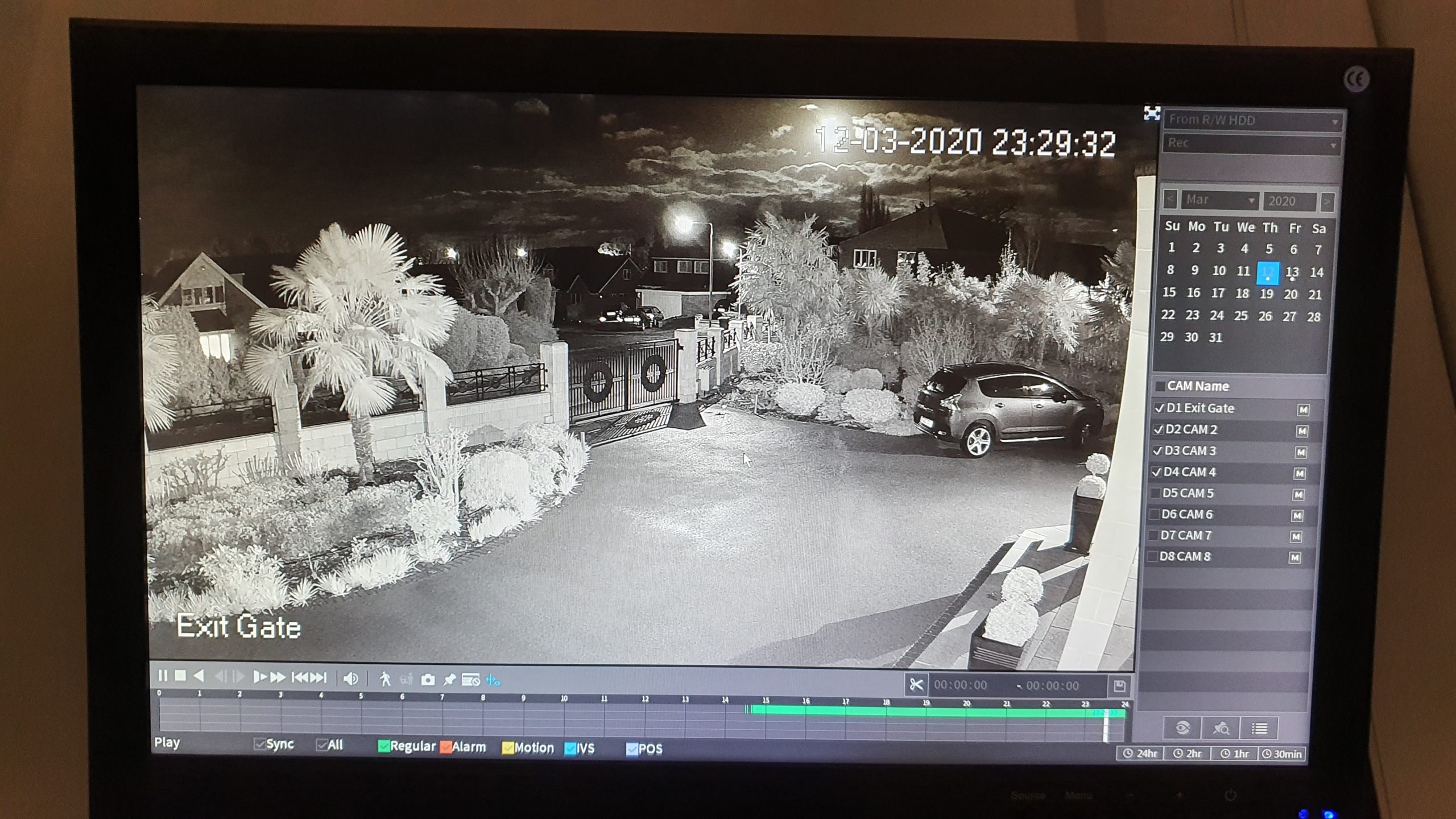

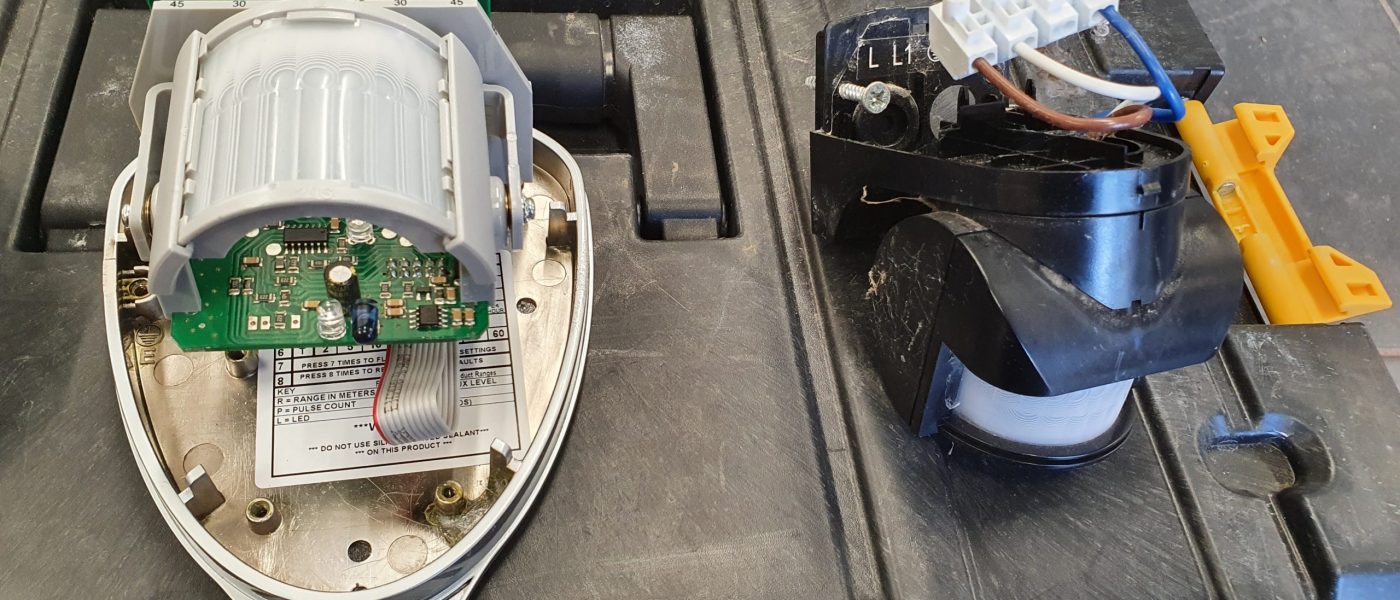

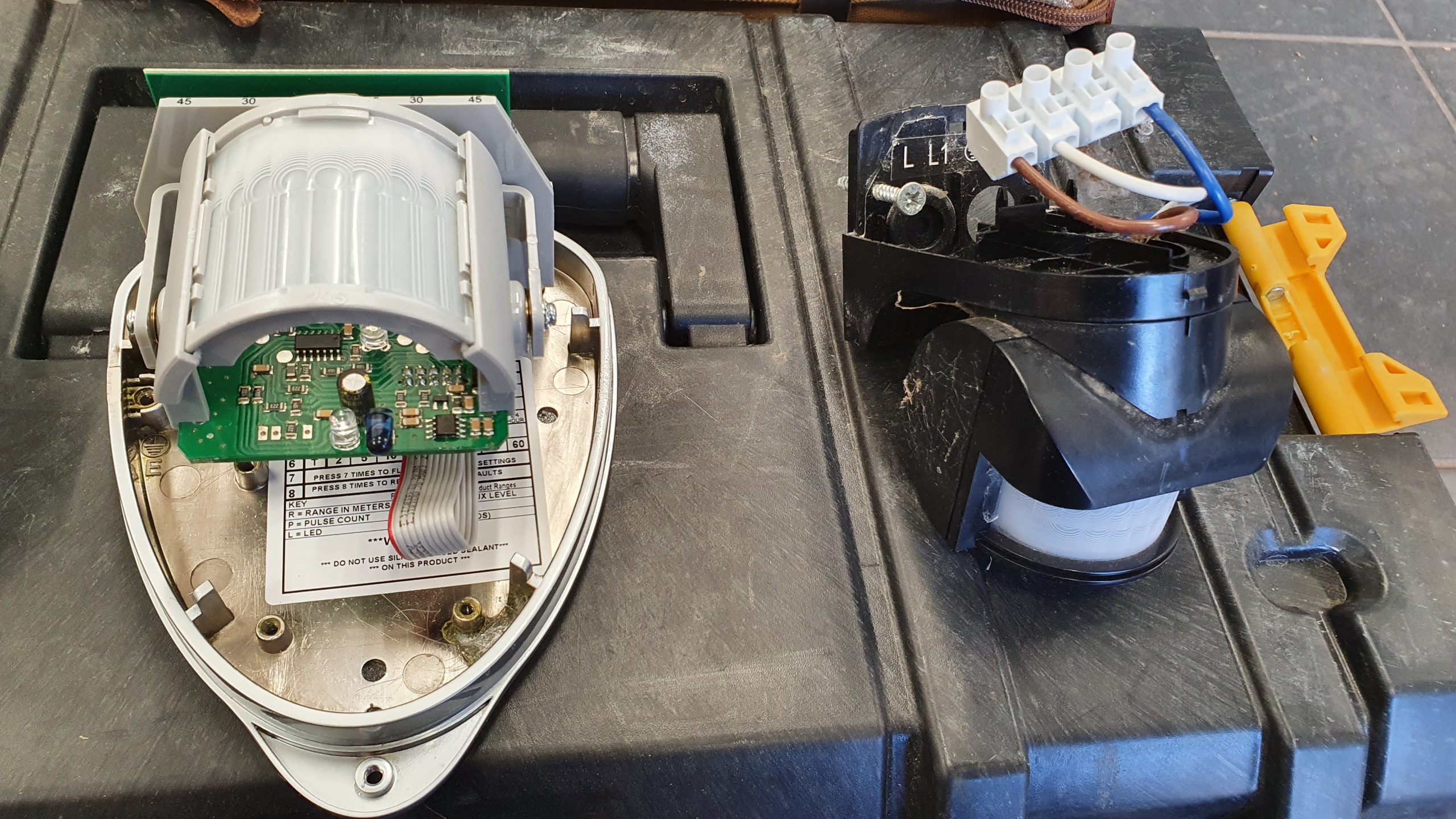

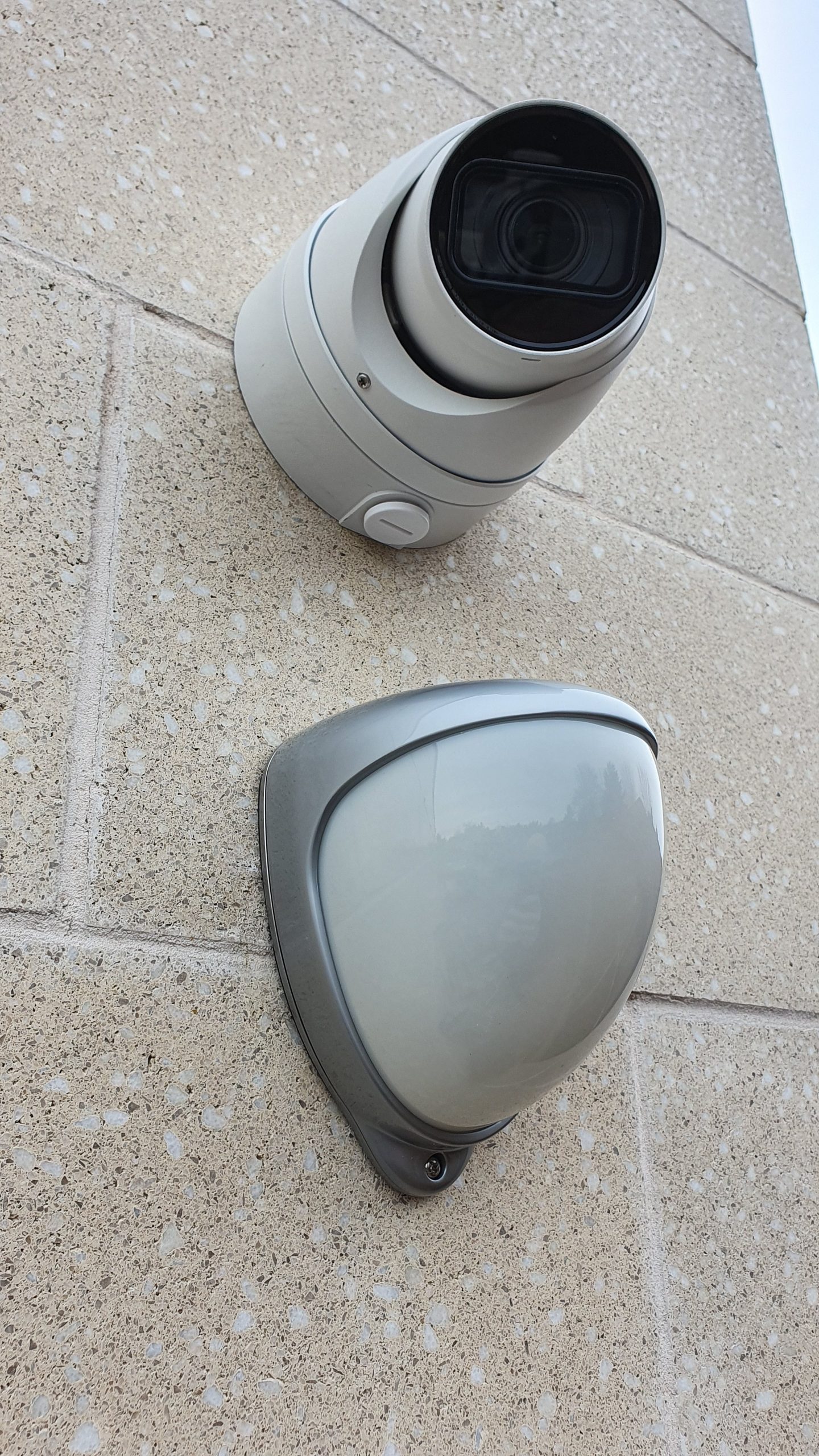

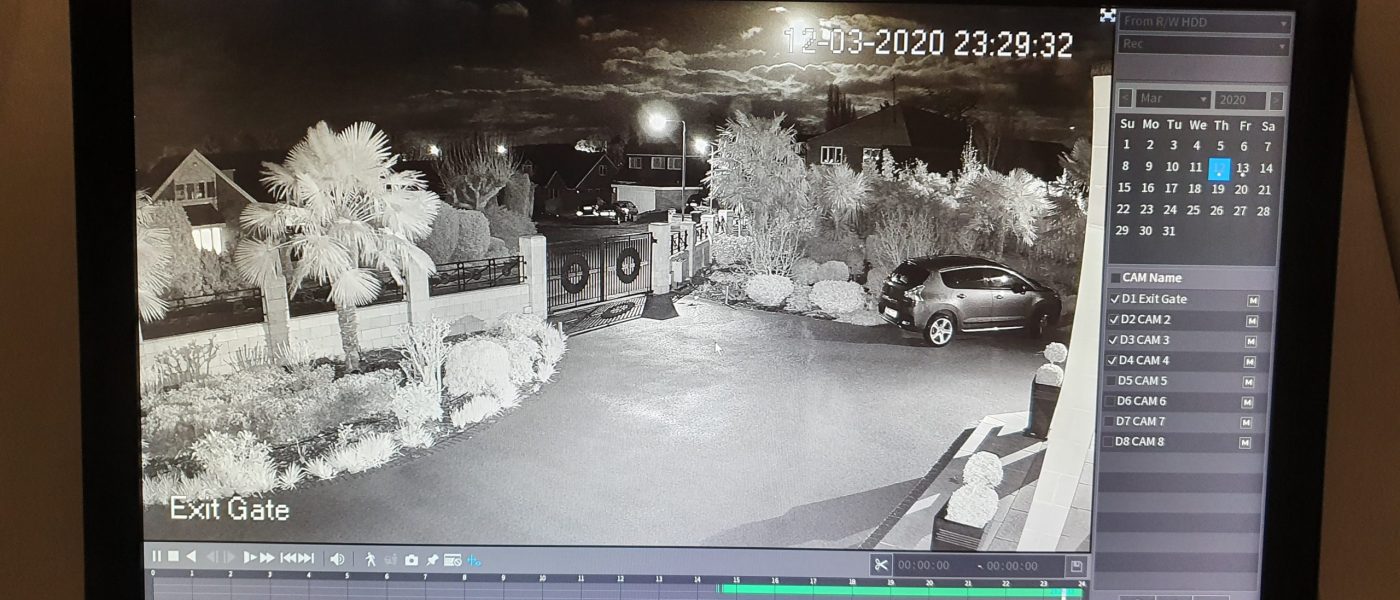

This was a retro fit installation of IP CCTV cameras and PIR detectors. The cameras have excellent night vision capabilities and their own IR illumination up to 50m, they also record audio. The IP motion detectors are unique in the industry using low voltage network cable for data and power. They can be calibrated to map the perimeter of the property to prevent unwanted alarms and triggering of events. As they are a network device, we can integrate them into the external lighting and alarm system simultaneously via Control4. In one of the photos you can see the upgrade from the old analogue, mains powered PIRs. With integration at this level the PIRs can cause different actions depending upon other events. For example if the alarm is off and motion is detected after dusk then bring on the wall lights. However, if the motion is detected after dusk and the alarm is on, then bring on the flood lights.
